typical application
Suitable for conventional fluid transportation, pharmaceutical industry, fine chemical industry, water treatment, environmental protection engineering, food and beverage production agent
Additives, supplementary acid and alkali in the process fermentation system, defoaming, scientific experiment and many other general fields
main feature
Industrial plastic enclosure
Large screen LCD display
Digital knob + mask button adjustment
Two modes of distribution and flow
Wide voltage power input
One-key quick filling and sucking back
Power-down memory
Suitable for conventional fluid transportation, pharmaceutical industry, fine chemical industry, water treatment, environmental protection engineering, food and beverage production agent
Additives, supplementary acid and alkali in the process fermentation system, defoaming, scientific experiment and many other general fields
main feature
Industrial plastic enclosure
Large screen LCD display
Digital knob + mask button adjustment
Two modes of distribution and flow
Wide voltage power input
One-key quick filling and sucking back
Power-down memory

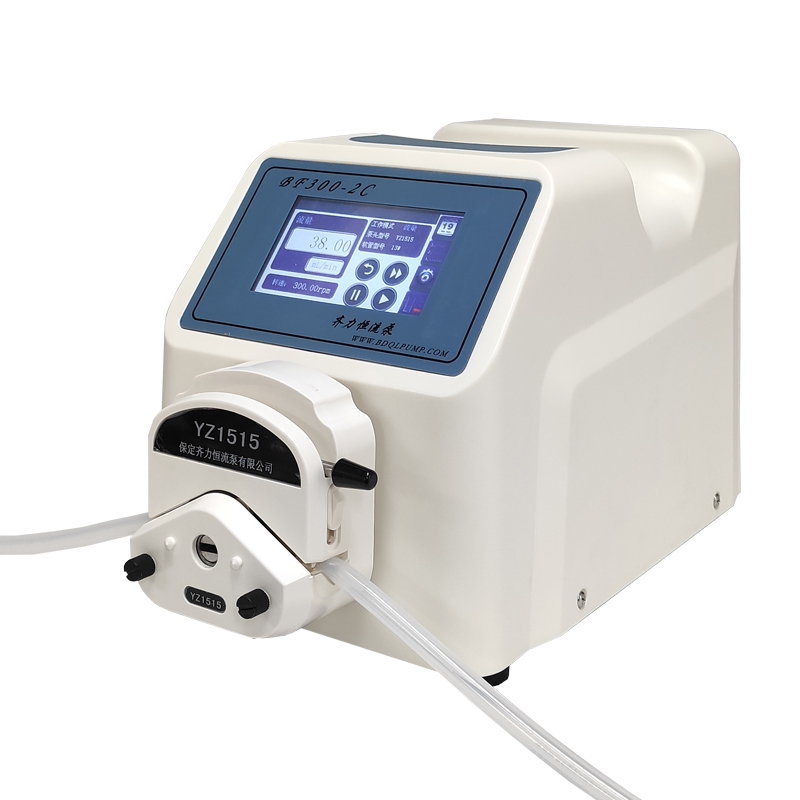

| BF300-2C technical indicators: | |||
| Speed adjustment range | 0.01-300rpm | External control input interface | 0-5V,0-10V,4-20mA,0-10kHz |
| Speed display resolution | 0.01rpm |
Communication Interface |
RS485 |
| Display method | 4.3 inch industrial-grade true color LCD screen |
Applicable power supply |
Wide voltage AC100-240V, 50Hz/60Hz |
| Dispensed liquid volume | 0.01mL-9999.99mL |
Power consumption |
＜50W |
| Number of allocations | 0-9999次(0 means infinite loop) |
working environment |
Temperature 0-40℃, humidity <80%, no condensation |
| Intervals | 0-9999.99s |
Dimensions (Length×Width×Height) |
316.5×210×228（mm）(Without pump head) |
| Common parameter storage | 10 sets of values | 381.8×210×228（mm）(With YZ1515 pump head) | |
| Operating mode | Flow mode, distribution mode |
Drive weight |
3.2kg |
| Additional features | Appointment function |
Protection level |
IP31 |
| Suction angle | 0-360° |
Driver applicable pump head |
YZ1515、YZ2515、DG |
| Applicable pump head |
Applicable hose |
Flow range (mL/min) |
| BF300-2C | ||
|
DG (6 rollers) |
Inner diameter≤3.17mm, Wall thickness 0.8-1mm |
0.0025-48 |
| DG(10滾輪) | 0.002-32 | |
| YZ1515 | 13# | 0.007-19 |
| 14# | 0.025-75 | |
| 19# | 0.042-125 | |
| 16# | 0.077-230 | |
| 25# | 0.16-480 | |
| 17# | 0.27-800 | |
| 18# | 0.38-1140 | |
| YZ2515 | 15# | 0.16-480 |
| 24# | 0.27-840 |
