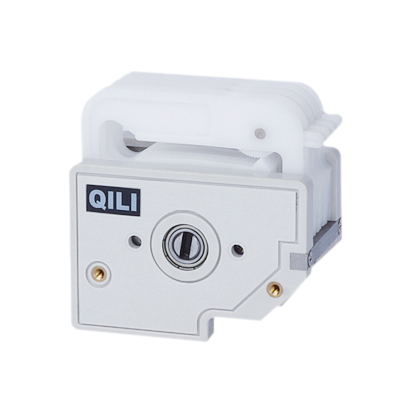

The pump head is designed for small flow and multi-channel fluid delivery. It is easy to replace and fix the hose. The pressure tube gap can be slightly adjusted to adapt to different wall thickness hoses.
|
model |
DG-1 |
DG-2 |
DG-4 |
DG-6 |
DG-8 |
DG-12 |
||
|
Number of channels |
1 |
2 |
4 |
6 |
8 |
12 |
||
|
Flow range |
6Scroll wheel |
0.002～48（Single channel） |
||||||
|
10Scroll wheel |
0.0025～32（Single channel） |
|||||||
|
Applicable hose(mm) |
the inside diameter of≤3.17mm Wall thickness0.8～1mm |
|||||||
|
Card material |
POM |
|||||||
|
Roller material |
SS |
|||||||
|
weight(kg) |
6Scroll wheel |
0.23 |
0.3 |
0.48 |
0.66 |
0.83 |
1.18 |
|
|
10Scroll wheel |
0.23 |
0.3 |
0.46 |
0.63 |
0.79 |
1.12 |
||
|
|
|
|
|
|
|
|
|
|
